Dome Type IP68 Fiber Optic Cable Joint Closure with 48/96/144 Cores and 24/48/72/96/144/288F Capacity

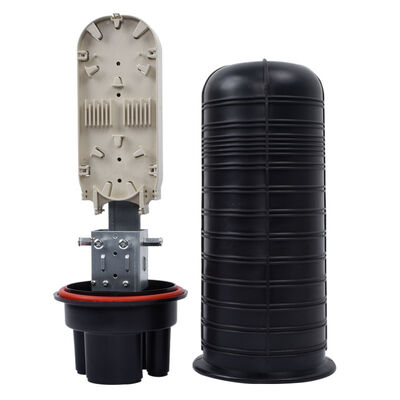

Image Grand : Dome Type IP68 Fiber Optic Cable Joint Closure with 48/96/144 Cores and 24/48/72/96/144/288F Capacity

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	DOWELL

Conditions de paiement et expédition:

Quantité de commande min:	100 pièces
Délai de livraison:	7-15 jours
Capacité d'approvisionnement:	1000pcs par 7 jours

Contact

Dome Type IP68 Fiber Optic Cable Joint Closure with 48/96/144 Cores and 24/48/72/96/144/288F Capacity

Définition

Matériel:

PE, PP, ABS, Métal

Capacité des fibres:

24/48/72/96/144/288F

Indice IP:

IP65 、 IP67 、 IP68

Capacité du plateau d'épissure:

2/4/6

Mettre en évidence:

IP68 Fiber Optic Cable Joint Closure

48/96/144 Cores Splice Closure

24/48/72/96/144/288F Splice Case

Dome Type IP68 Fiber Optic Cable Joint Closure 48/96/144 Cores

Fiber Optic Cable Joint Closure (often called a splice closure or splice case) is a protective enclosure used to house and protect the spliced connection points of fiber optic cables. Its primary function is to provide a safe, sealed, and organized environment where two or more fiber optic cables can be joined, and the delicate fusion splices or mechanical splices can be stored and managed.

Specification

Fiber Capacity	24/48/72/96/144/288F
Cable Entry/Exit Ports	1 in 3 out/ 1 in 4 out/ 1 in 6 out/ 1 in 8 out/ 2 in 4 out
IP Rating	IP65, IP67, IP68
Splice Tray Capacity	2/4/6
Material	PE, PP, ABS, Metal

Components

Housing/Shell: The main body, usually made of durable plastic (like PE, PP) or metal, designed to be mechanically robust.
Sealing System: Critical for water and dust-tightness. Common methods include:
- Heat Shrink Seals: Used with cables that have heat-shrinkable sleeves
- Mechanical Seals/Glands: Use clamps, rubber grommets, and sealing tapes to create a seal around the cable entries
- Gel Seals: Often used with re-enterable closures

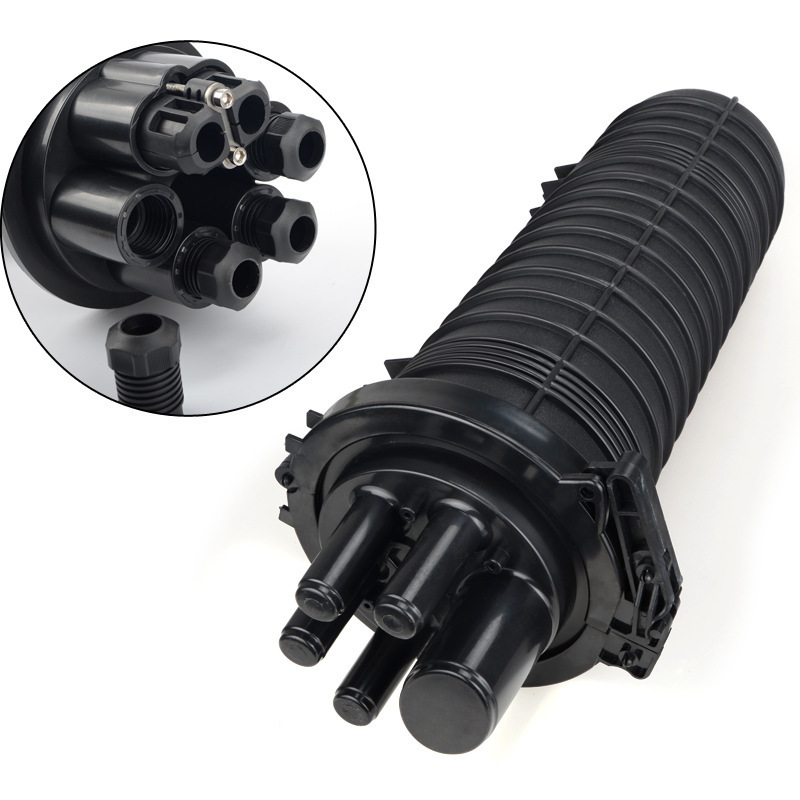

Cable Ports/Entries: Openings where the incoming and outgoing cables enter the closure. They are part of the sealing system.

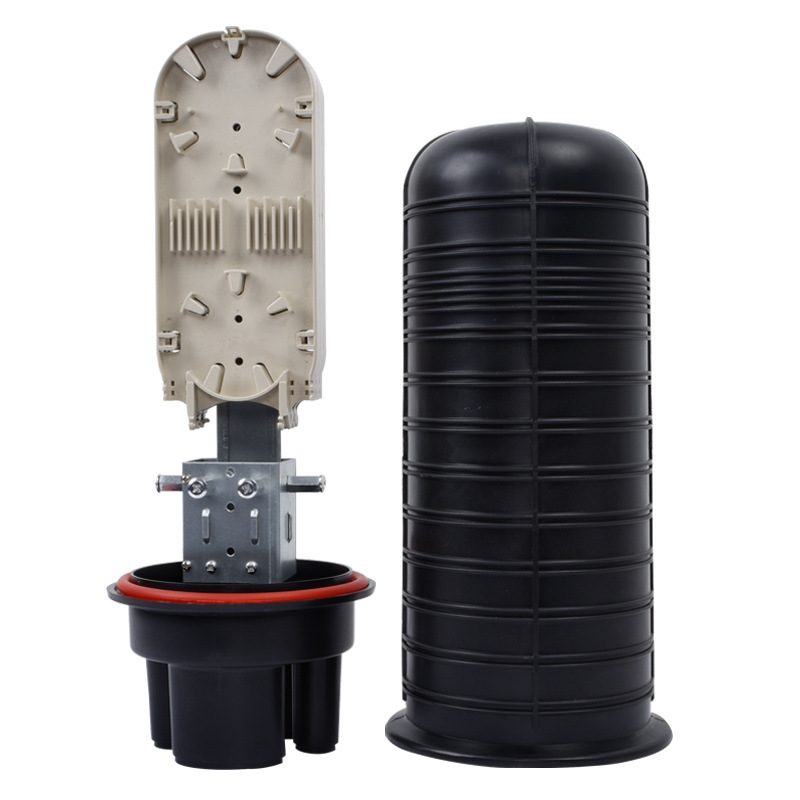

Splice Tray (Organizer): The core internal component. It's a plastic tray that holds and protects the individual fusion splices (usually in silicone or gel sleeves) and manages the fiber routing. Multiple trays can often be stacked.
Mounting Bracket/Strand Hook: Allows the closure to be mounted on a pole, strand, tower, or placed in a manhole or handhole.

Installation

Aerial: Mounted on a support strand between poles
Underground/Burial: Placed in manholes, handholes, or directly buried
Pole-Mounted: Attached directly to a utility pole
Indoor: Used in controlled environments like data centers (less demanding sealing requirements)

Important Considerations

Cable Count and Fiber Count: Must accommodate the number of cables and fibers to be spliced
Re-enterability: Whether the closure needs to be reopened multiple times for network reconfiguration (common in access networks)
Sealing Method: Must be compatible with the cable types and installation method
Environmental Rating: Look for standards like IP68 (dust-tight and submersible) or GR-312 (Telcordia standard for outdoor closures)
Mounting Type: Must suit the physical location (pole, strand, etc.)
