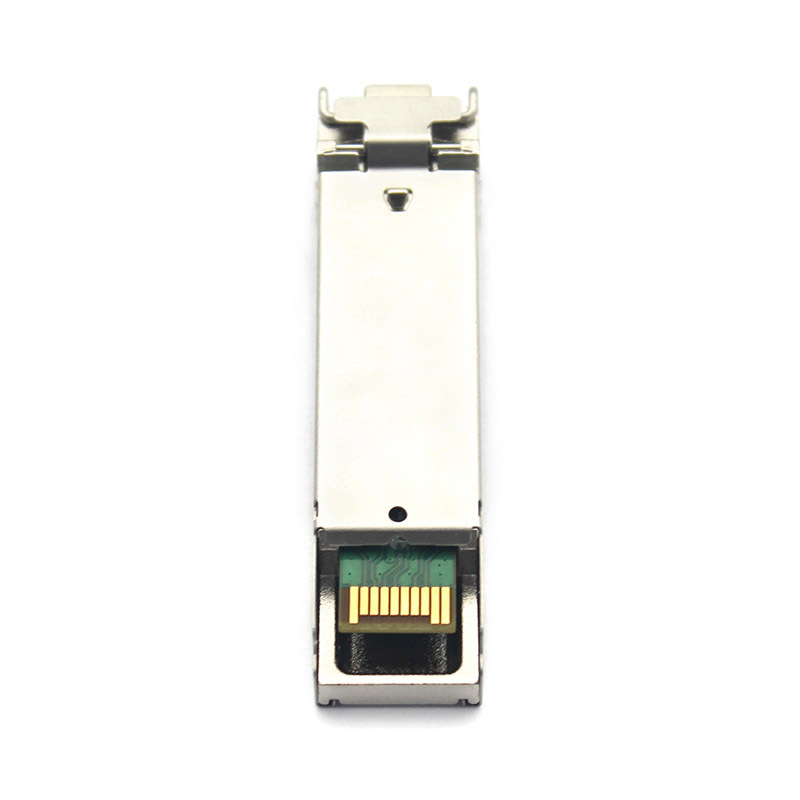

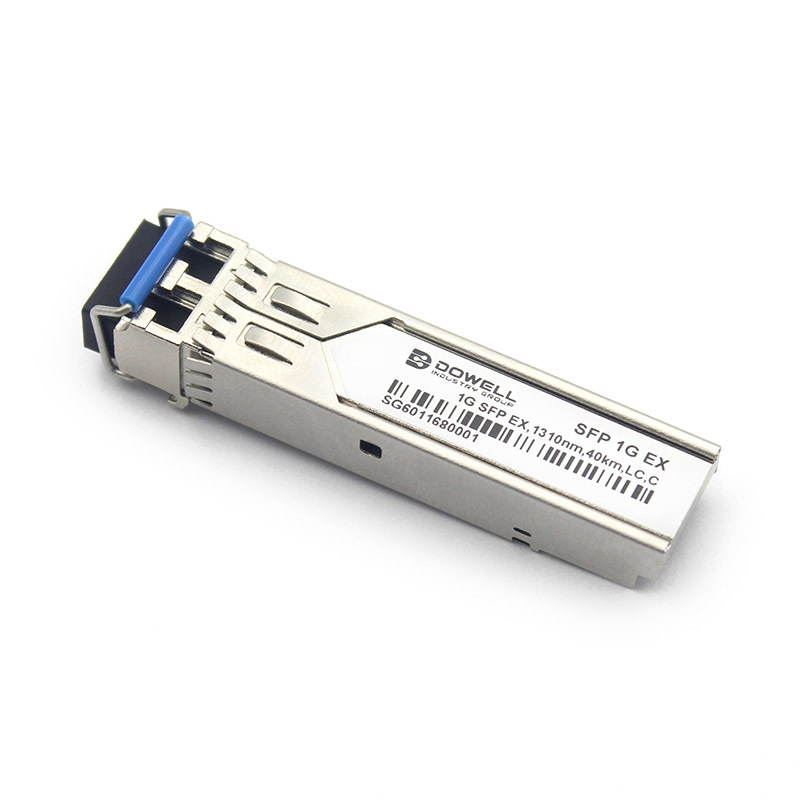

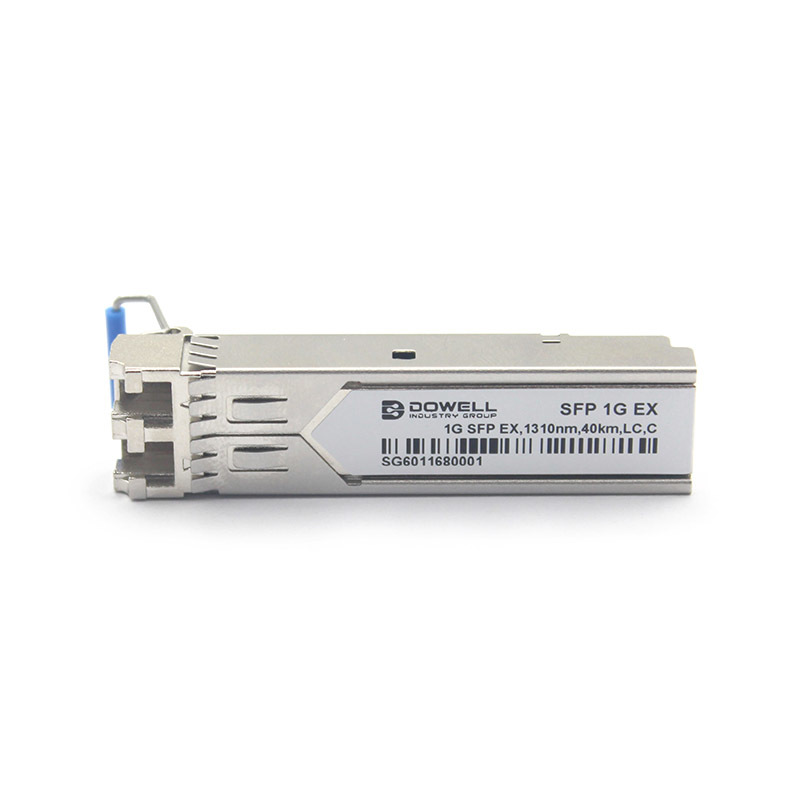

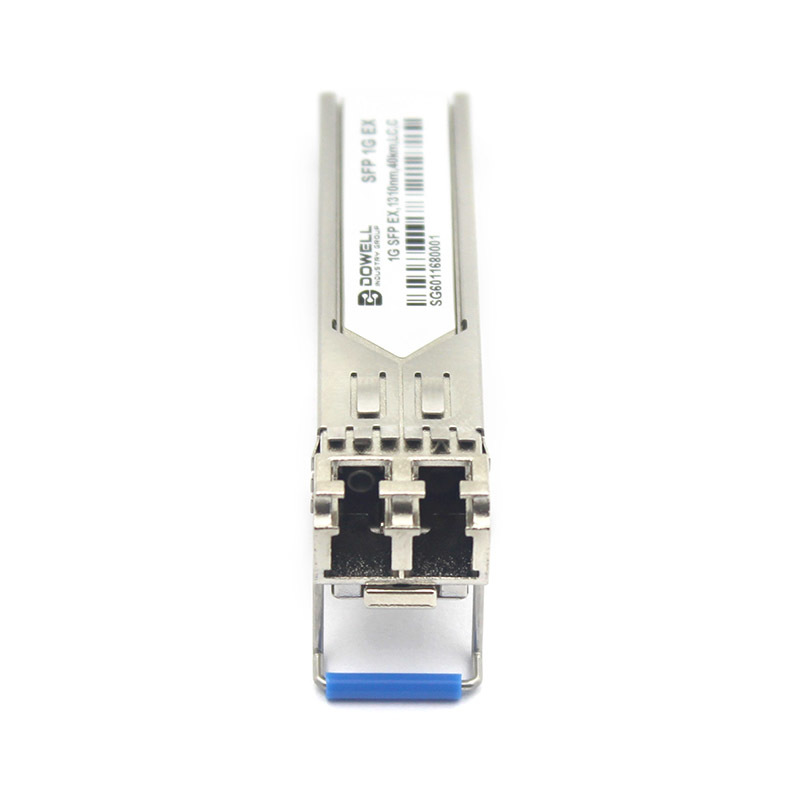

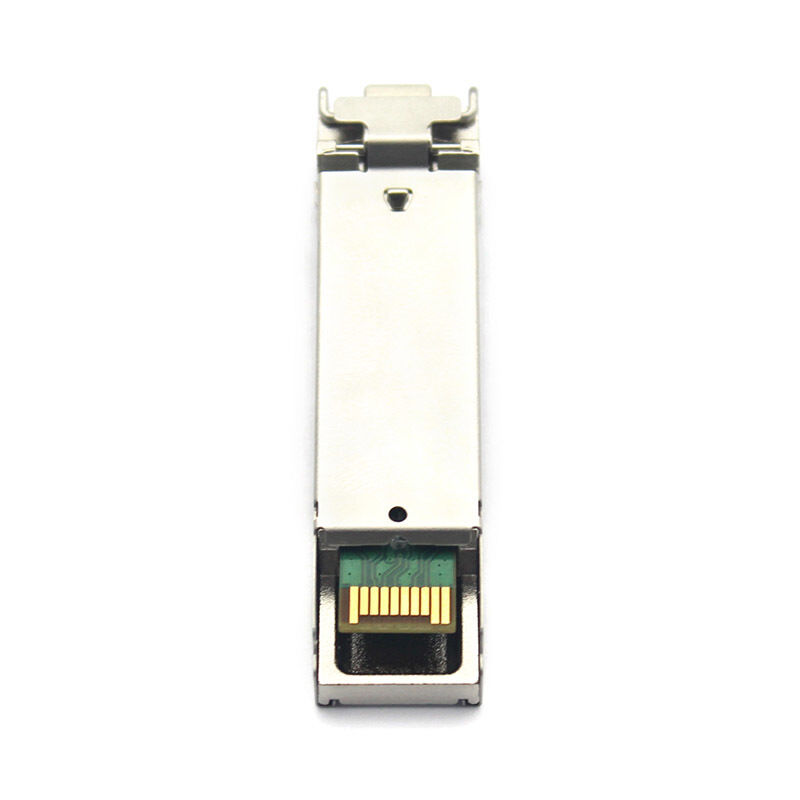

1.25Gbps SFP Transceiver Module 1310nm Wavelength 40km Reach For High Speed Data Communication

1.25Gbps SFP Transceiver Module 1310nm Wavelength 40km Reach For High Speed Data Communication
1.25Gbps SFP Transceiver Module 1310nm Wavelength 40km Reach For High Speed Data Communication
1.25Gbps SFP Transceiver Module 1310nm Wavelength 40km Reach For High Speed Data Communication 1.25Gbps SFP Transceiver Module 1310nm Wavelength 40km Reach For High Speed Data Communication 1.25Gbps SFP Transceiver Module 1310nm Wavelength 40km Reach For High Speed Data Communication 1.25Gbps SFP Transceiver Module 1310nm Wavelength 40km Reach For High Speed Data Communication
Informations de base
Lieu d'origine: Chine
Nom de marque: DOWELL
Numéro de modèle: DW-1312G-L40D
Quantité de commande min: 10 pièces
Délai de livraison: 7-15 jours
Conditions de paiement: T/T
Capacité d'approvisionnement: 1000pcs par semaine
meilleur prix Contactez
Détail Infomation
Débit binaire: 1.25 Gbps Laser: 1310 nm
Distance: 40km Type de fibre: SMF
Connecteur: LC DDMI: DDMI
Mettre en évidence:

40km SFP Transceiver Module

,

1.25Gbps SFP Transceiver Module

,

40km Reach SFP Transceiver Module

Description de produit

LC Connector 1.25G EX SFP Transceivers Module 1310nm 40Km
The 1.25G SFP EX optical transceiver is a high-performance, compact module designed for extended-range single-mode fiber optic data communication. These transceivers undergo thorough testing to meet demanding specifications. Each model completes rigorous environmental testing to ensure performance reliability even in harsh conditions. Functionality validation pushes components to their limits, securing availability and reliability for mission-critical applications.
Technical Specifications
Parameter Symbol Min. Typical Max. Unit Notes
Transmitter
Center Wavelength λc 1270 1310 1355 nm
-20dB Spectral Width Pm 1 nm
Average Output Power Pavg -5 0 dBm
Extinction Ratio ER 9 dB
Return Loss 12 dB
Transmitter OFF Output Power POff -30 dBm
Receiver
Center Wavelength λc 1270 1310 1355 nm
Receiver Sensitivity, Average Power -24 dBm 1
Receiver Saturation Power Psat -3 dBm
Loss of Signal Assert PA -35 dBm
Loss of Signal De-assert PD -25 dBm
Los Hysteresis Phys 0.5 dB
1.25Gbps SFP Transceiver Module 1310nm Wavelength 40km Reach For High Speed Data Communication 0
Key Features
  • Hot-pluggable SFP footprint
  • Duplex LC receptacles
  • Low power dissipation
  • RoHS compliant and lead-free
  • Support Digital Diagnostic Monitor interface
  • Single +3.3V power supply
  • Case operating temperature: Commercial: 0 to 70℃, Industrial: -40 to 85℃
Applications
  • Enterprise & Campus Networks
  • Telecommunication & Metro Networks
  • Data Center & Storage Networks
  • Security & Surveillance Systems
  • Industrial & Harsh Environments
1.25Gbps SFP Transceiver Module 1310nm Wavelength 40km Reach For High Speed Data Communication 1
